Used 2019 SANY 56m Concrete Pump Truck With Boom SYM5449THBE 560C-8A
  • Used 2019 SANY 56m Concrete Pump Truck With Boom SYM5449THBE 560C-8A
  • Used 2019 SANY 56m Concrete Pump Truck With Boom SYM5449THBE 560C-8A
  • Used 2019 SANY 56m Concrete Pump Truck With Boom SYM5449THBE 560C-8A
  • Used 2019 SANY 56m Concrete Pump Truck With Boom SYM5449THBE 560C-8A

Used 2019 SANY 56m Concrete Pump Truck With Boom SYM5449THBE 560C-8A

Place of Origin China
Brand Name SANY
Certification GS, RoHS, CE, ISO9001
Model Number SYM5449THBE 560C-8A
Product Details
Condition:
Used
Year Of Manufacture:
2019
Aftersales Service:
Available With Technical And Parts Support
Color:
Red
Warranty:
Provided
Shotcrete Type:
Semi-Dry
Machining Process::
Hydraulic
Structure:
Cylinder Type
Dimension:
1386*2550*4000mm
Weight:
44000kg
High Light:

Used SANYConcrete Pump Truck With Boom

,

Used 56m Concrete Pump Truck With Boom

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
USD 120,000~150,000 per unit (FOB price)
Packaging Details
Export standard
Delivery Time
15 work days
Payment Terms
L/C, T/T, D/P, D/A, Western Union
Supply Ability
10 units per month
Product Description

Second Hand Used 2019 SANY Benz 56m Truck Mounted Concrete Pump Actros 4144 SYM5449THBE 560C-8A



The latest model of the 56C8 pump truck is equipped with 6 segments of boom, further enhancing construction flexibility. The maximum pumping height reaches 18 floors, which can cover over 80% of the construction scope of domestic buildings. Whether for personal use or rental, it is very popular among construction sites.



The open hydraulic system is the standard configuration of the Sany concrete pump truck, and the 56C8 is the most classic open system. After continuous technological iteration and upgrading, as well as full market validation, the oil pump matching and pipeline design have reached the best state. Low pressure loss, much lower failure rate than the industry average, independent oil tank and high quality control hydraulic cleanliness all allow the pumping performance of the 56C8 to be maximized.



Compared with competitors, it has absolute advantage in terms of one button established technology, intelligent boom vibration reduction technology, efficient energy-saving technology, rotary anti swing control technology, high wear and tear parts, fault self diagnosis technology, intelligent boom system, safety protection technology, etc.



The comparison of efficient pumping performance between C8 series pump trucks combines elephant technology, optimizes directional matching, scientifically designs pumping structures, and high-efficiency hydraulic systems, making C8 pump trucks more efficient in pumping performance than competitors.



Product Decription:



MODEL NO. SYM5449THBE 560C-8A Productivity 180m3/H
Feeding Height 1370mm Vertical Reach 56m
Vibrating Amplitude 2.6mm Horizontal Reach 52m
Certification ISO9001: 2000, CE Boom Section 6
Condition Used Theor. Concrete Output 180m3/H
Color Red Concrete Press 8.3~12MPa
Power Type Diesel Max.Hydraulic Pressure 360bar
Engine model  OM470LA.5-54 Max Engine Power 315/1800kW/rpm
Truck Brand Mercedes Benz Made Year 2019
Chassis Model Actros 4144  8*4 Hydraulic system Open type
Application Construction Engineering Specification 1386*2550*4000mm
Delivery Time 7-20 Working Days Trademark SANY
Transport Package Roro Ship, Cargo Bulk Ship Origin China
HS Code 8705909100 Production Capacity 10 Units Per Month

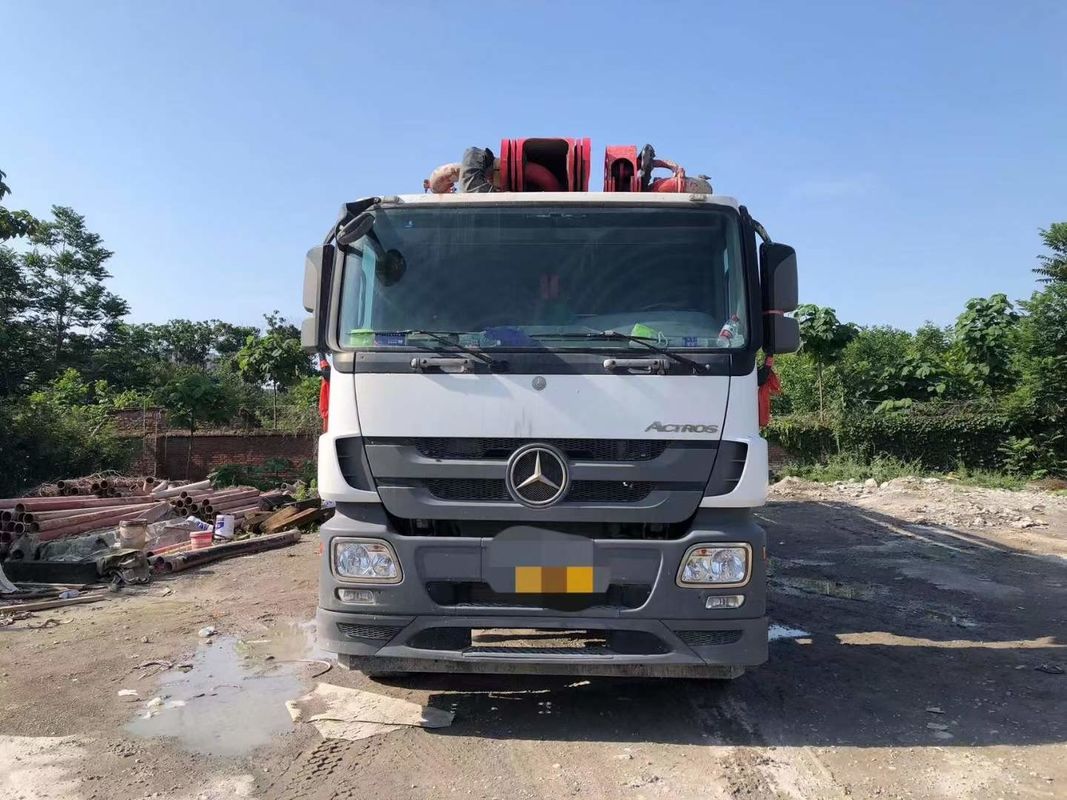

Product Show

Used 2019 SANY 56m Concrete Pump Truck With Boom SYM5449THBE 560C-8A 0

Used 2019 SANY 56m Concrete Pump Truck With Boom SYM5449THBE 560C-8A 1Used 2019 SANY 56m Concrete Pump Truck With Boom SYM5449THBE 560C-8A 2
