Refurbished Concrete Trailer Pump
>
|
|
| Place of Origin | China |
| Brand Name | SANY |
| Certification | CE, ISO9001 |
| Model Number | HBT8018C-5S |

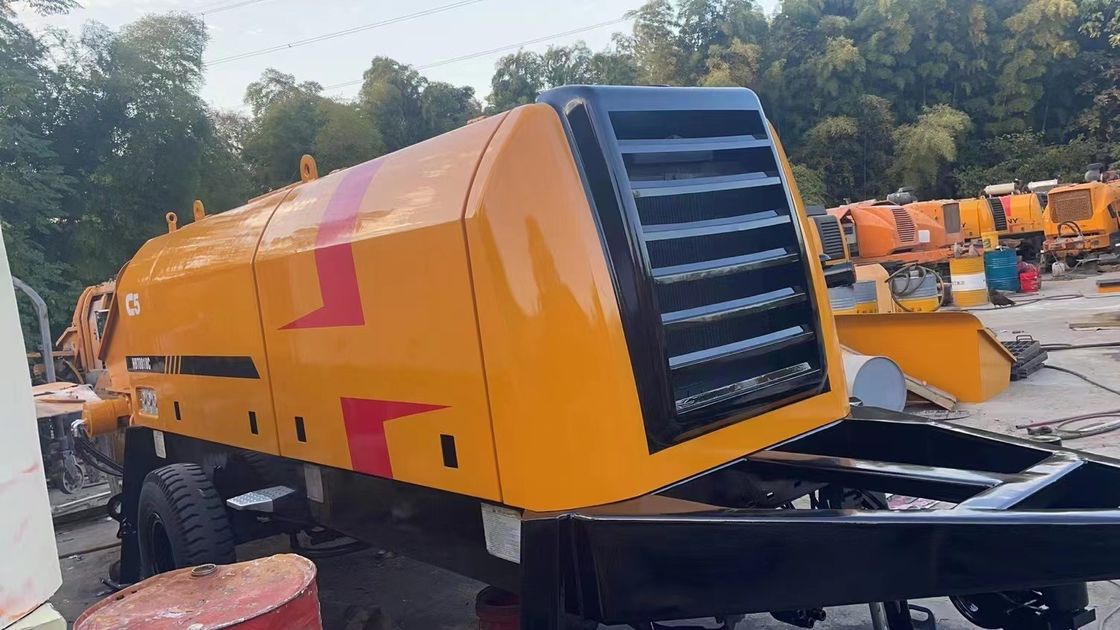

Used refurbished SANY HBT8018 diesel concrete trailer pump stationary pump
Advantages and Characteristics
HBT8018C-5S trailer pump has maximum output of 85m3/h, configured with self-diagnosis technique to monitor the pump status at any time and diagnose more than 50 faults in real time. It can reduce the troubles shooting time by 70%, granting you both time and peace of mind.
Lower Costs and Wider Adaptability
Advanced Energy-saving Technology
New generation of energy-saving technology and automatic adjustments of the engine and power based on load makes every drop of fuel generate strong power, reducing 25% of energy consumption.
Wear Resisting Parts
Discharge port, wear plate and cutting ring, concrete piston and delivery cylinder adopt Sino-Germany high-tech materials and advanced technology, which greatly improves the product performance.
Wide Adaptability
Capable of operating under any condition from -22°C to 55°C and operating continuously for up to 12 hours, it can handle any fluid, pumping of difficult concrete like B90, C150, and 3-gradation concrete and even pump materials such as silt, slag, waste materials, and mortar.
Product Info.
| Model NO. | HBT8018C-5S | Vibrating Amplitude | 0.7m3 |
| Certification | ISO9001: 2000 | Condition | New |
| Color | Yellow | Max.Delivery Pressure(Theoretical) Low/H | 10/18 MPa |
| Max.Concrete Output(Theoretical) Low/Hig | 85/50 M3/H | Engine Rated Power | 180kw |
| Delivery Cylinder Bore*Strok | 200X 1800 mm | Hopper Capacity*Feeding Height | 0.7X1420 M3/mm |
| Dimension (L*W*H) | 7330X2125X2685 mm | Gross Weight | 7300 Kg |
| Max.Aggregate Size 150mm Pipe | 50mm | Max.Aggregate Size 125mm Pipe | 40mm |
| Slump of Concrete | 100-230mm | Transport Package | Grouting Mortar Pump Comply with Export Packaging |
| Specification | trailer pump | Trademark | SANY |
| Origin | Cn | HS Code | 84134000 |
Product Specifications:
| Rated power | 180kW |
| Max.delivery pressure(theoretical) Low/High pressure | 10/18 Mpa |
| Max.concrete output(theoretical) Low/High pressure | 85/50 m3/h |
| Delivery cylinder Bore*Strok | φ200*1800 mm |
| Hopper capacity*Feeding height | 0.7*1420 m3/mm |
| Dimension (L*W*H) | 7330*2125*2685 mm |
| Gross weight | 7300 kg |
| Max.aggregate size φ150mm delivery pipe | 50 mm |
| Max.aggregate size φ125mm delivery pipe | 40mm |
| Type | S valve |
| Slump of concrete | 100~230mm |
Product Show
