Place of Origin | China |
Brand Name | XCMG |
Certification | GS, RoHS, CE, ISO9001 |
Model Number | QAY160 |
2013 XCMG 160 Ton Used All Terrain Truck Crane/Refurbished All Terrain Truck Mounted Crane QAY160
QAY160 all terrain crane adopts a six axis all terrain chassis, automatic control mechanical gearbox, oil pneumatic suspension, full head cab, and fully covered walking platform. Oval section six section telescopic main boom, two section folding side mounted auxiliary boom, single cylinder front support luffing, high end of turntable, bottom hanging movable combination counterweight, independent engine for upper carriage, hidden dual independent winch, and external meshing slewing mechanism. Two level double H-shaped legs, 360 ° full rotation operation. Total power variable system, pilot electro-hydraulic proportional control technology. Large lifting capacity, strong driving force, good performance, wide applicability, and reliable use.
Performance characteristics
1. The product has superior lifting performance
The lifting performance is at the leading level in China and close to the international advanced level. The leg span is large and the operation stability is good. Without the use of the fifth leg, it can operate 360 ° in all directions, without being limited by the front area, and can extend the leg according to the situation of the work site.
2. Six section box shaped telescopic arm, elliptical section, imported high-strength steel plate, single telescopic oil cylinder automatic control telescopic mechanism, internal interlocking system, capable of achieving multiple arm lengths and strong lifting capacity.
3. Strong off-road ability and wide adaptability
4. The electrical system adopts a PLC integrated programmable controller and a CAN-BUS bus control network to complete the logical control and electrical proportional control functions of the system. It is combined with conventional electrical equipment.
5. Hydraulic transmission, pump controlled open variable system, closely combined with electric proportional operation system, modular design, stable operation, greatly improving the control performance of the crane.
6. The independent engine on the vehicle can meet the Euro II emission standard.
7. Adopting international supporting equipment, selecting domestic and foreign reliable supporting parts, especially imported key parts (pumps, valves, motors, etc.), and making reasonable matching.
8. Emphasize the design of ergonomics, with a fully enclosed large arc control room that can be flipped up along the horizontal axis, with a maximum lifting angle of 20 degrees, increasing the viewing range.
9. Set up cooling and heating air conditioning. Adopting an imported progressive centralized lubrication system. Automatic lubrication of the main relative motion points extends the service life of the entire machine and is easy to maintain.
Basic Info.
Model NO. |
QAY160 |
Shaft Number |
6 |
Boom length |
60m |
Jib length |
20m |
Engine Rated Power |
162/2100kw/(R/Min) |
Operating Weight |
70000kg |
Transport Package |
Export Standard Package |
Specification |
15900*3000*4000mm |
Origin |
China |
HS Code |
87051091 |
Product Parameters:
Parameters | Unit | Value |
Overall length | mm | 15900 |
Overall width | mm | 3000 |
Overall height | mm | 4000 |
Weight in traveling state | kg | 70000 |
Axle load | kg | 11500/11500/11700/11700/11800/11800/kg |
Engine model (upper) | NT855-C280 (Cummins) | |
Engine power | kW | 162 |
Rated engine resolution | R/min | 2100 |
Maximum traveling speed | Km/h | 71 |
Minimum turning radius | m | 12 |
Minimum ground clearance | mm | 278 |
Maximum gradeability | % | 48 |
Fuel consumption/100km | L | ≈80 |
Maximum rated lifting weight | t | 160 |
Maximum lifting torque of basic boom | kN.m | 5282 |
Basic boom length | m | 13.6 |
Maximum boom length | m | 60 |
Maximum jib length | m | 20 |
Maximum lifting height | m | 56.3 |

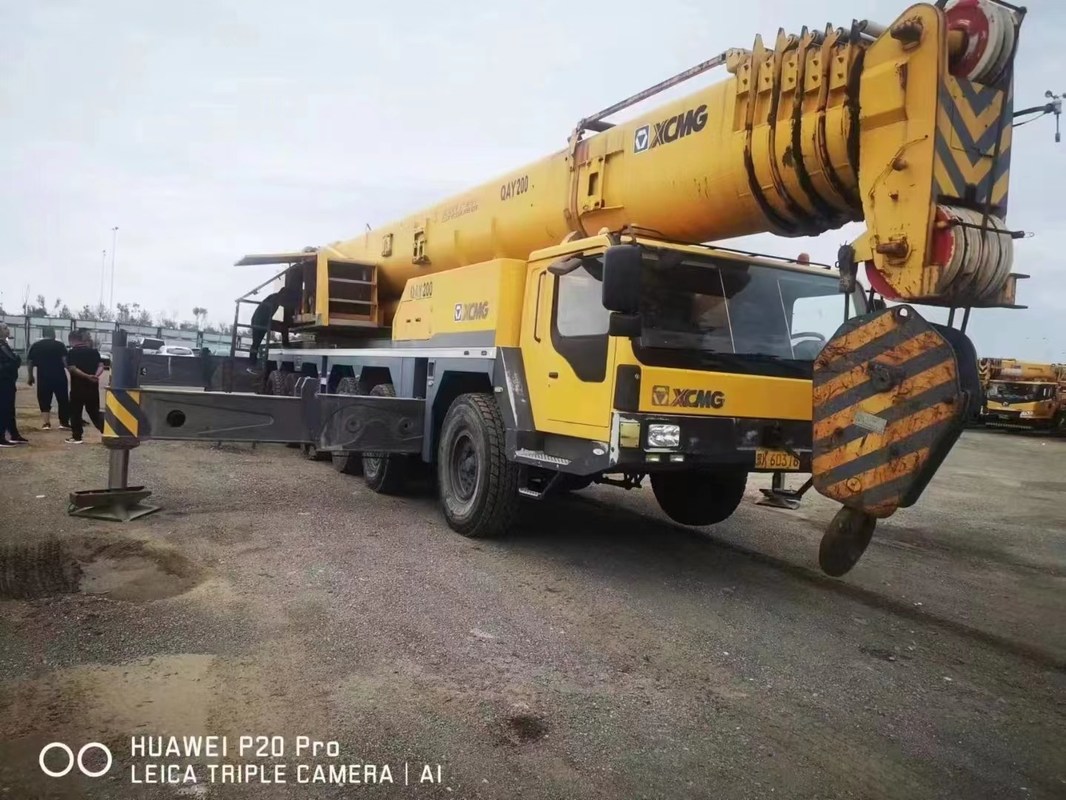

Product Show
