Used SANY SR155 Rotary Drilling Rig – 56m Max Drilling Depth | 1500mm Hole Diameter
  • Used SANY SR155 Rotary Drilling Rig – 56m Max Drilling Depth | 1500mm Hole Diameter
  • Used SANY SR155 Rotary Drilling Rig – 56m Max Drilling Depth | 1500mm Hole Diameter
  • Used SANY SR155 Rotary Drilling Rig – 56m Max Drilling Depth | 1500mm Hole Diameter
  • Used SANY SR155 Rotary Drilling Rig – 56m Max Drilling Depth | 1500mm Hole Diameter
  • Used SANY SR155 Rotary Drilling Rig – 56m Max Drilling Depth | 1500mm Hole Diameter
  • Used SANY SR155 Rotary Drilling Rig – 56m Max Drilling Depth | 1500mm Hole Diameter

Used SANY SR155 Rotary Drilling Rig – 56m Max Drilling Depth | 1500mm Hole Diameter

Place of Origin Hunan,China
Brand Name SANY
Model Number SR155
Product Details
Max Drilling Depth:
56m/44m
Max Drilling Diameter:
1500mm
Rotation Speed:
5-35rpm
Line Pull:
160KN
Stroke:
4200mm
Lifting Capacity (Main Winch):
160KN
Lifting Capacity (Auxiliary Winch):
60KN
Base Engine:
D06FRC-TAA Mitsubishi
Engine Power:
147kW/2100 Rpm
Overall Height:
18590mm
Highlight:

1500mm Hole Diameter Rotary Drilling Rig

,

Used SANY SR155 Rotary Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1 Piece
Price
US$ 81,000 / Piece.
Delivery Time
15-20 Days
Payment Terms
L/C,D/A,D/P,T/T,Western Union
Supply Ability
To be negotiated
Product Description
Product Overview

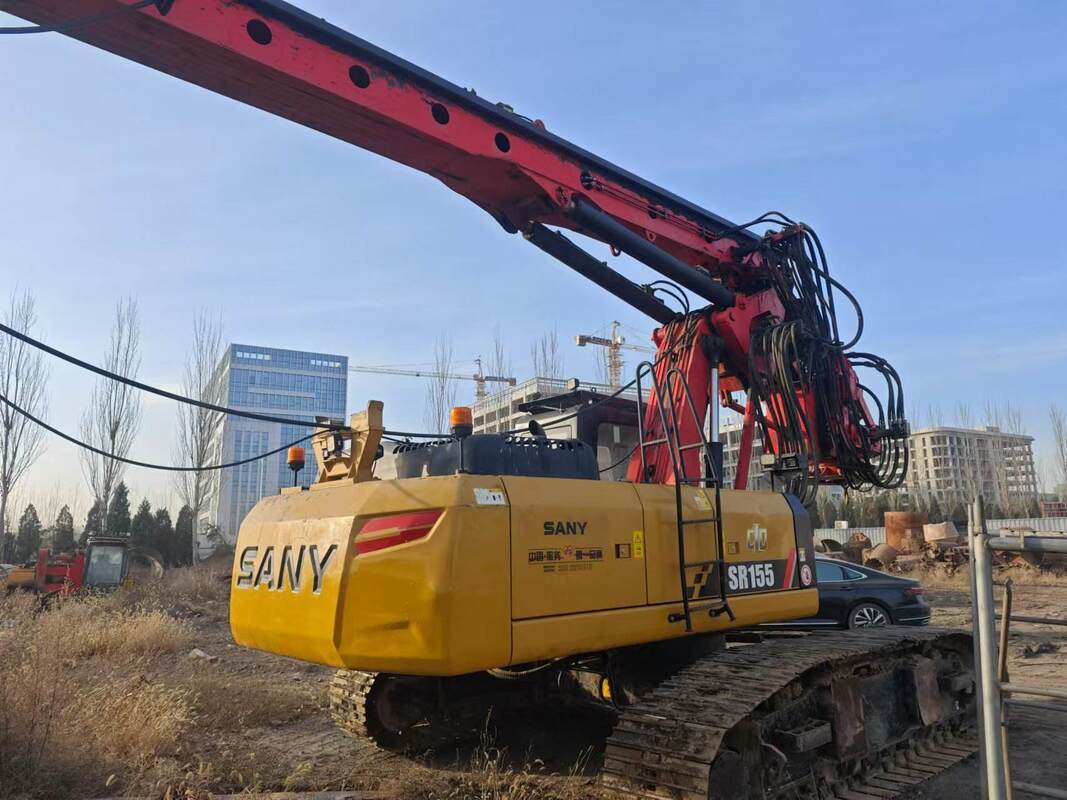

The Used SANY SR155 Rotary Drilling Rig (manufactured end of 2019) is a high-performance foundation construction machine with 9000 logged working hours. It delivers a 56m/44m max drilling depth and 1500mm hole diameter, paired with robust core components (motor, gear, pump, gearbox, engine) for long service life and safe operation. Designed for efficiency, it remains easy to maintain, and includes a machinery test report + video outgoing-inspection to ensure transparency for buyers.

Key Features:
  • SANY SR155 Rotary Drilling Rig (produced end 2019, 9000 working hours)
  • 56m/44m max drilling depth + 1500mm hole diameter (ideal for foundation construction)
  • Robust construction & precision engineering for long service life
  • Core components (motor, gear, pump, gearbox, engine) for reliable performance
  • Easy to maintain; machinery test report provided
Technical Parameters:
Category Parameter Detail
Drilling Performance Max Drilling Depth 56m/44m
Max Drilling Diameter 1500mm
Rated Output Torque 155KN·m
Rotation Speed 5-35rpm
Crowd System Crowd Force 155KN
Line Pull 160KN
Stroke 4200mm
Winch Systems Main Winch Lifting Capacity 160KN
Main Winch Wire Rope Diameter 26mm
Main Winch Max Line Speed 80m/min
Auxiliary Winch Lifting Capacity 60KN
Auxiliary Winch Wire Rope Diameter 14mm
Auxiliary Winch Max Line Speed 75m/min
Mast Inclination Forward/Backward 5/90°
Lateral ±3°
Chassis & Engine Base Engine D06FRC-TAA Mitsubishi
Engine Power 147kW/2100 rpm
Emission Standard COM III
Chassis Length 5975mm
Track Shoe Width 700mm
Overall Machine Operating Weight 48t (48000KG)
Overall Height 18590mm
Transport Width 3140mm
Kelly Bar Options Standard Friction Kelly (φ377*5*12) Depth: 56m, Weight: 5800KG
Applications:
  • Large-scale foundation construction projects (piles, caissons)
  • Assistance with export documentation and logistics coordination
  • Post-sales support for component replacement or performance queries
Packing and Shipping:
  • Packaging: Standard export packaging to protect the rig during transit (custom packaging available on request).
  • Shipping: Delivery time is negotiable; multiple shipping methods (sea/land) are supported, with real-time tracking provided.
FAQ
Q: What is the Model and Brand of this rotary drilling rig?

A: The Model is SR155, and the Brand is SANY.

Q: What is the max drilling depth and diameter?

A: Max drilling depth is 56m/44m, and max drilling diameter is 1500mm.

Q: How many working hours does this rig have?

A: It has 9000 logged working hours.

Q: Are inspection documents provided?

A: Yes,a machinery test report and video outgoing-inspection are included.

Q: What is the Minimum Order Quantity and Price?

A: MOQ is 1 Piece, and the price is US$ 81,000 / Piece.
