Used Zoomlion 43m Concrete Pump Truck – Model ZLJ5280THBJE | 100 m³/h Output
  • Used Zoomlion 43m Concrete Pump Truck – Model ZLJ5280THBJE | 100 m³/h Output
  • Used Zoomlion 43m Concrete Pump Truck – Model ZLJ5280THBJE | 100 m³/h Output
  • Used Zoomlion 43m Concrete Pump Truck – Model ZLJ5280THBJE | 100 m³/h Output
  • Used Zoomlion 43m Concrete Pump Truck – Model ZLJ5280THBJE | 100 m³/h Output
  • Used Zoomlion 43m Concrete Pump Truck – Model ZLJ5280THBJE | 100 m³/h Output
  • Used Zoomlion 43m Concrete Pump Truck – Model ZLJ5280THBJE | 100 m³/h Output
Used Zoomlion 43m Concrete Pump Truck – Model ZLJ5280THBJE | 100 m³/h Output

Used Zoomlion 43m Concrete Pump Truck – Model ZLJ5280THBJE | 100 m³/h Output

Place of Origin Hunan,China
Brand Name Zoomlion
Model Number ZLJ5280THBJE
Product Details
Brand:
Zoomlion
Manufacture Date:
2021
Model:
ZLJ5280THBJE
Max. Vertical Conveying Distance:
42.3m
Max. Horizontal Conveying Distance:
37.65m
Productivity:
100 M³/h
Highlight:

Zoomlion 43m Concrete Pump Truck

,

Model ZLJ5280THBJE Used Concrete Pump Truck

Payment & Shipping Terms
Minimum Order Quantity
1 Unit
Price
FOB USD 82,000~86,000/ Unit.
Delivery Time
15-20 Days
Payment Terms
L/C,D/A,D/P,T/T
Supply Ability
To be negotiated
Product Description
Product Overview

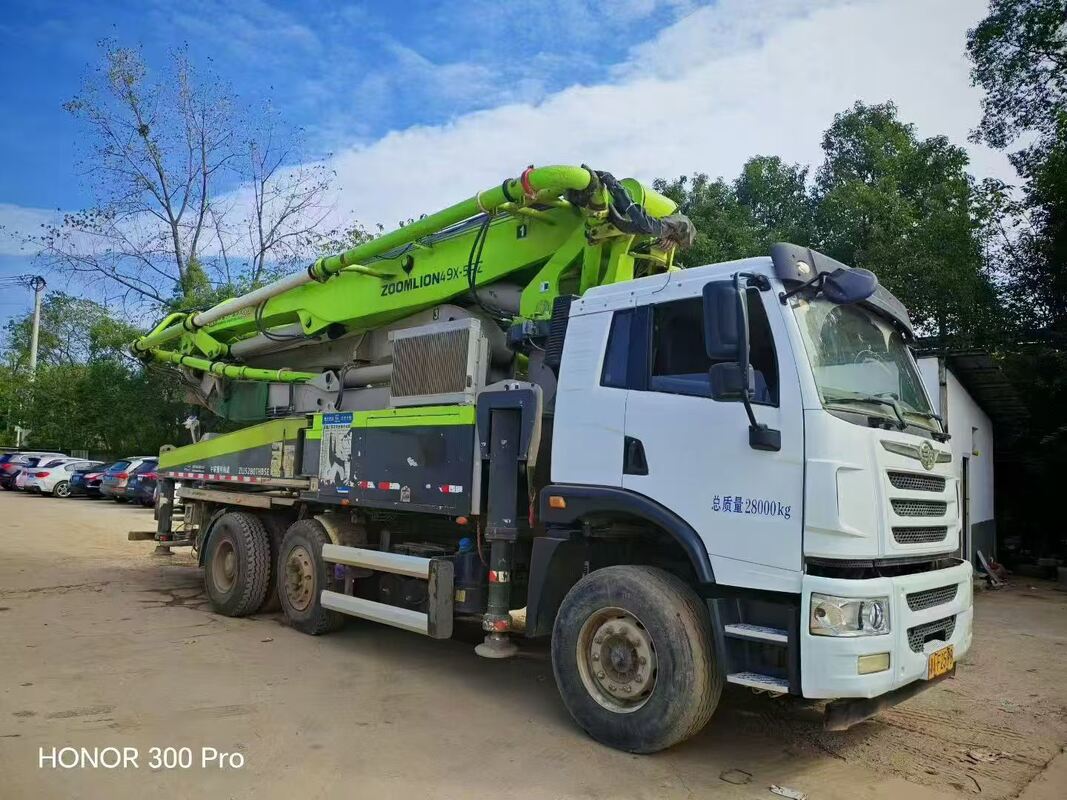

This truck - mounted concrete pump (model: ZLJ5280THBJE) is manufactured by Zoomlion Heavy Industry Science and Technology Co., Ltd. It was produced in March 2021 and has a series number of 016396A1210010. With a chassis model of CA5300THBPIK2T2BE5A81 and an engine model of CA6DL1 - 32E5 (max net power: 235 kW at 2300 r/min), it offers a maximum vertical reach of 42.3 m, a horizontal reach of 37.65 m, and a theoretical concrete output of 100/60 m³/h. It can deliver concrete at a pressure of 8/15 MPa, has a gross vehicle mass of 28000 kg, a curb mass of 27870 kg, and dimensions of 10950mm*2550mm*3960mm.

Technical Parameters:
Parameters Details
Brand Zoomlion
Model ZLJ5280THBJE
Power Type Diesel
Max. Vertical Conveying Distance 42.3m
Max. Horizontal Conveying Distance 37.65m
Productivity 100 m³/h
Complete Vehicle Kerb Mass 27870 kg
Core Components Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox
Dimension(L*W*H) 10950mm X*2550mm X*3960mm
Chassis model CA5300THBP1K2T2BE5A81
Maximum Outlet Pressure 8/15MPa
Warranty 1 Year
Origin Hunan, China
Machinery Test Report Provided
Key Advantages
  1. Impressive Reach: The 42.3m vertical and 37.65m horizontal reaches enable efficient concrete placement in high - rise and large - scale construction projects.
  2. Powerful Engine: The CA6DL1 - 32E5 engine provides a max net power of 235 kW, ensuring stable and strong power output for continuous operation.
  3. High - capacity Output: A theoretical concrete output of 100/60 m³/h meets the demands of large - volume concrete pouring tasks.
  4. Reliable Pressure Performance: 8/15 MPa concrete delivery pressure guarantees effective concrete transmission over long distances and to high heights.
  5. Established Brand: Produced by Zoomlion, a well - known heavy - industry enterprise in China, ensuring product quality and after - sales service.
Applications:

1. High - rise Building Construction: Efficiently conveys concrete to upper floors for column, beam, and slab pouring.
2. Bridge Construction: Enables precise concrete placement for bridge decks, piers, and other components.
3. Large - scale Infrastructure Projects: Such as dams, stadiums, and industrial plant construction, for large - volume concrete pouring.
4. Road Construction: Used in road base and pavement concrete pouring, especially for long - span and high - fill sections.
5. Precast Concrete Component Production: Supplies concrete to precast factories for manufacturing components like concrete pipes and precast beams.

Support and Services:
  • Technical guidance for operation and maintenance
  • Assistance in sourcing genuine Zoomlion and Sinotruk spare parts
  • Post-sales troubleshooting and query resolution
  • Full logistics and export documentation support
Packing and Shipping:
  • Packaging: Standard export packaging to ensure safe transit.
  • Shipping: Delivery time is negotiable. We support various shipping methods and provide tracking and documentation assistance.
FAQ

Q1: What should I do if the concrete output is lower than the rated value?

Check for pipeline blockages first. Also, inspect the engine power output and the pump's hydraulic system for faults.

Q2: How to maintain the pump to ensure long - term stable operation?

Regularly replace engine oil, filter elements, and hydraulic oil. Check the wear of wearing parts like piston cups, and conduct routine inspections of the pipeline system.

Q3: Can this pump be used in cold weather?

Yes, but pre - heating measures for the engine and hydraulic system may be needed. Select suitable anti - freezing hydraulic oil and concrete additives.

Q4: What is the maximum aggregate size that this pump can handle?

It is generally suitable for aggregates with a maximum size that ensures smooth pipeline transportation, usually not exceeding 25mm. Specific requirements should refer to the operation manual.

Q5: How to deal with a sudden engine shutdown during operation?

First, check the fuel supply and electrical system. If there is no problem, check the pump's overload protection device. If the problem persists, contact professional after - sales service.
