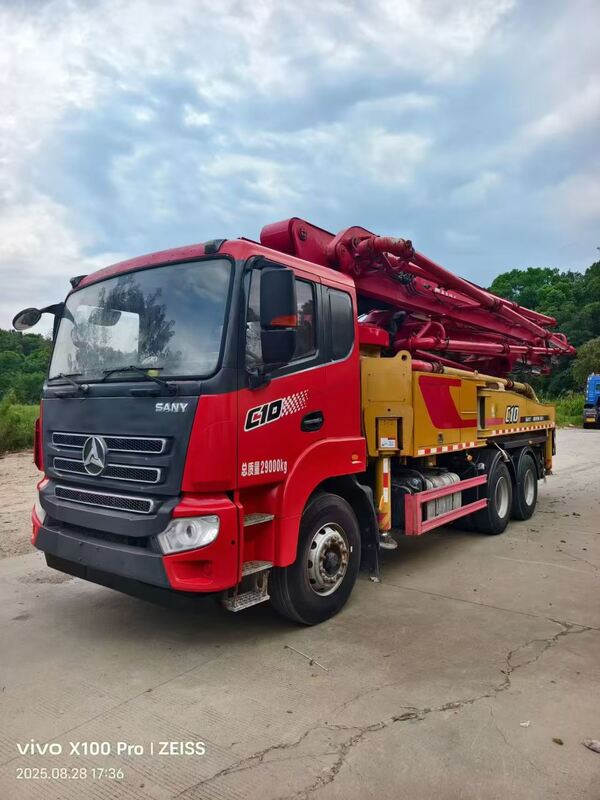

Used 2021 SYM5290THBES SANY Concrete Pump Truck | 43m |250kW Diesel | 120m³/h Output

This truck - mounted concrete pump (Model: SYM5290THBES) is manufactured by SANY Automobile Manufacturing Co., Ltd. Produced in February 2021 (Production No.: BC52900A8055), it has a maximum theoretical output of 120 m³/h and a maximum theoretical pressure of 13 MPa. The pump offers a maximum vertical reach of 42.5 m and a horizontal reach of 37.8 m. It is equipped with an engine model D09C5 - 340E0, which has a maximum net power of 244 kW at 1900 r/min and a rated power of 250 kW, with an engine displacement of 8700 ml. The gross mass of the vehicle is 29000 kg, the curb mass is 28870 kg, and the external dimensions (length * width * height) are 14500mm*2553mm*3960mm.

1. High - Efficiency Output: With a maximum theoretical output of 120 m³/h, it can quickly complete large - volume concrete pouring tasks, improving construction efficiency.
2. Long - Distance Conveying: The 42.5 m vertical reach and 37.8 m horizontal reach allow concrete to be accurately delivered to high - rise and long - span construction positions.
3. Powerful Engine: The D09C5 - 340E0 engine provides strong power support, with a maximum net power of 244 kW and a rated power of 250 kW, ensuring stable operation under heavy - load conditions.
4. Reliable Pressure Performance: A maximum theoretical pressure of 13 MPa ensures effective concrete transmission, even in complex construction environments.
5. Trusted Brand: Produced by SANY, a well - known enterprise in the construction machinery industry, the product has reliable quality and complete after - sales service.

1. High - rise Building Construction: Efficiently conveys concrete to upper floors for the construction of building structures such as columns, beams, and slabs.
2. Bridge Construction: Enables precise concrete placement for bridge decks, piers, and other bridge components, ensuring the quality of bridge construction.
3. Large - scale Infrastructure Projects: Such as the construction of dams, stadiums, and industrial plants, suitable for large - volume concrete pouring operations.
4. Road and Tunnel Construction: Used for concrete pouring in road bases, tunnel linings, etc., to meet the construction needs of linear projects.
5. Precast Concrete Component Manufacturing: Supplies concrete to precast factories for the production of precast components like concrete pipes and precast beams.

We provide comprehensive support for this used concrete pump truck, including technical guidance for operation and maintenance, assistance in sourcing genuine SANY spare parts, and dedicated customer service for troubleshooting. Our goal is to ensure your equipment operates at peak performance throughout its lifecycle.

The pump truck is packaged with standard export packaging to ensure safe transit. Delivery time and shipping methods (sea, land, etc.) are negotiable, and we offer full logistics and export documentation support.

1. What should be done if the concrete output does not reach the rated value?

   First, check whether the concrete mixture ratio is appropriate and whether there are pipeline blockages. Then, inspect the engine power output and the pump's hydraulic system for faults.

2. How to maintain the pump to extend its service life?

   Regularly replace engine oil, filter elements, and hydraulic oil. Check the wear of wearing parts such as piston cups, and conduct regular inspections of the pipeline system and structural connections.

3. Can this pump be used in low - temperature environments?

   Yes, but it is necessary to take pre - heating measures for the engine and hydraulic system. Use suitable anti - freezing media and check the performance of the pump in low - temperature conditions in advance.

4. What is the maximum aggregate size that this pump can handle?

   Generally, it is suitable for aggregates with a maximum size that ensures smooth pipeline transportation, usually not exceeding 25mm. For specific requirements, refer to the product operation manual.

5. How to deal with abnormal noise during the operation of the pump?

   First, check whether there are loose components or abnormal friction. Then, check the operation of the engine, hydraulic pump, and other key components. If the problem persists, contact professional after - sales service in a timely manner.
